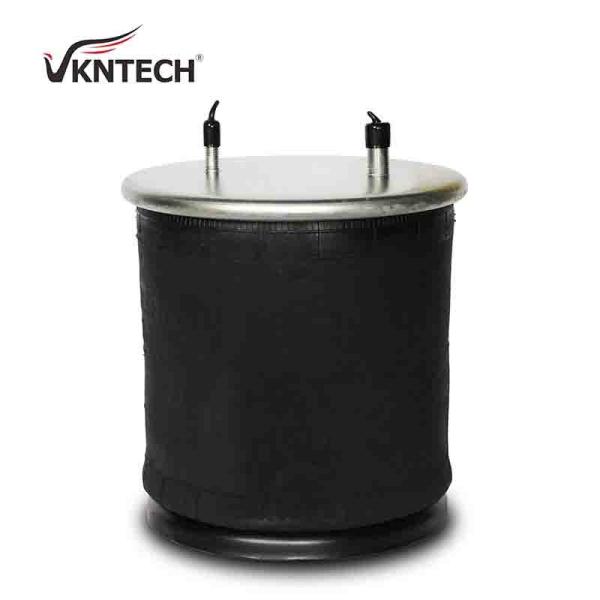

Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144

Name: Air Bag 11 10517 A 377Air Ride Suspension System 1R13047Truck Spare Parts Air Ballons Air Bags W013589144
Brand: VKNTECH
Price: 1.00 USD

Buy cheap Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144 product

Place of Origin : Guangdong, China

Brand Name : VKNTECH

Certification : IATF16949/ISO9000

Packaging Details : CARTON/PALLET

Supply Ability : 2000000pcs/Year

MOQ : 20 Pieces

Price : $1.00 - $45.00/Pieces

Model Number : 1K9144

OE NO. : W01-358-9144

Car Model : For NEWAY TRUCK AND BUS

Warranty : 1 YEAR

Type : by sea/by truck/by air

Service offered : OEM

Suspension system : Air Spring Suspension

Price condition : FOB China

Sample : Available

Type of Goods : Air Spring/Air bags/Air Ballons

Material : Imported Natrul Rubber

Operation : Gas-filled

Package : Standard packing or customized

Brand : VKNTECH or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144

OEM Numbers

Contitech	11 10.5-17 A 377	NEWAY	90557155
Firestone	W01-358-9144
	1T19L-7/F-7
Goodyear	1R13-047
	1R13-160
	1R14-215
	1R14-160

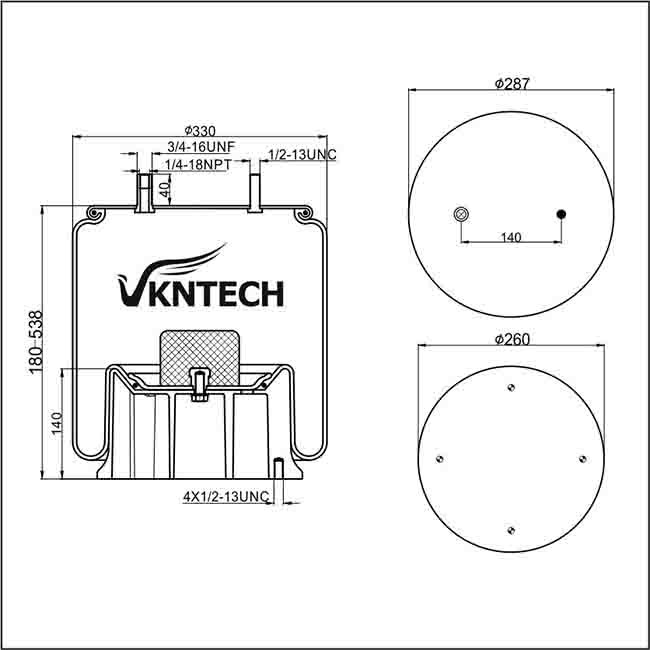

Product Drawing

Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144

Specifications

Air Spring Air Fitting Size	Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Air Spring Compressed Height	8.4 in.
Air Spring # of Lobes	1 Solid Sleeve
Air Spring Type	1T - Reversible Sleeve
Bead Plate (Top) & Deflated Bellows O.D.	11.31 and 10.62 in.
Bead Plate (Top) Mounting Bolts Dimension Center to Center	5.50 in.
Diameter	10.62 in.
Extended Height Deflated	21.7 in.
Finished Weight	23.7 lbs
Piston (Bottom) Mounting Bolt Dimensions Center to Center	7.88 in.
Piston Height	5.5 in.
Bead Plate Top Diameter	11.31 in.
Bead Plate Bottom Diameter	10.25 in.
Application	Holland (Neway) 90557155
Bottom Bead Plate Hardware Key	4 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Compressed Height (in.)	8.4
Extended Height (in.)	21.7
Firestone Bellows Number	1T19F-7
Holland (Neway) Number	905-57-155
Piston Number	9657
Piston Width (in.)	10.5
Top Bead Plate Hardware Key	Bold or Stud 1/2-13
Top Plate Width (in.)	11.31
Top Plate Number	3388
Triangle Part Number	8377
Triangle Bellows Number	6365

Air Bag 11 10.5-17 A 377/Air Ride Suspension System 1R13-047/Truck Spare Parts Air Ballons Air Bags W01-358-9144 Images
